LMV321IDCKR-TP

This operational amplifier features rail-to-rail output swing, input common-mode range including ground, and 3mV max input offset for low-voltage systems.

  • Gain-bandwidth product (GBW) :1MHz
  • Input offset voltage (Vos) :1mV
  • Input offset voltage temperature drift (Vos TC) :1.8uV/°C
  • Slew rate (SR) :1V/us
  • Input bias current (Ib) :5pA
  • Input offset current (Ios):1pA

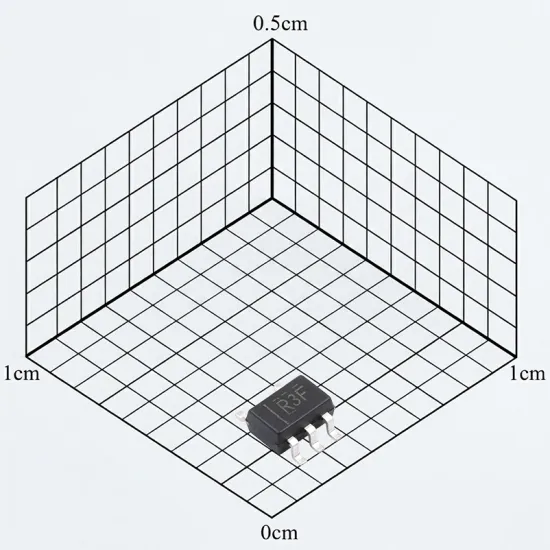

  • Product Package :SOT-353​
  • Packaging Method :Tape & Reel
  • Product Gross weight :0.0321(g)

USD 0.0636

19000

contact shop

Product Images

Datasheet PDF

Enlarge View Download PDF

Supplier Information

Email:[email protected]

Tel:15670610275
